Reed Drying Rack
Reed Drying Rack for Oboe
Description
The reed drying rack (or reed drying board) is designed for reed makers to place and dry wrapped blanks and scraped reeds.
Variants

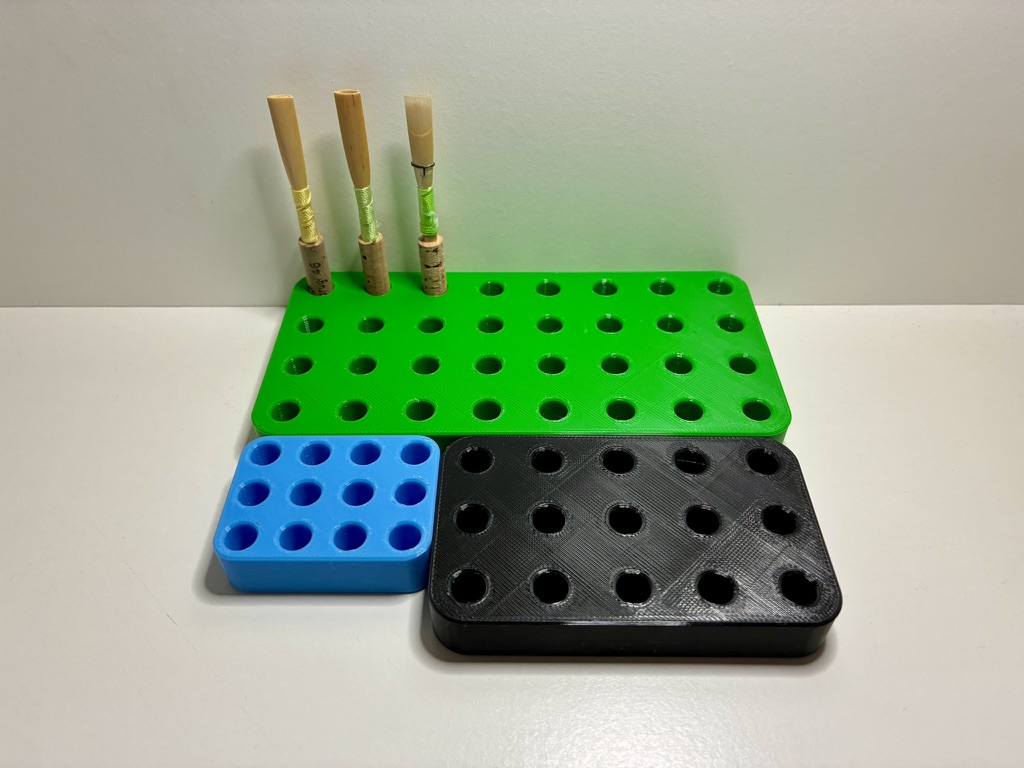

Recessed Reed Rack
The recessed reed rack holds reeds by recessed holes. This type of rack is easy to store and carry, but it does not support bassoon reeds.

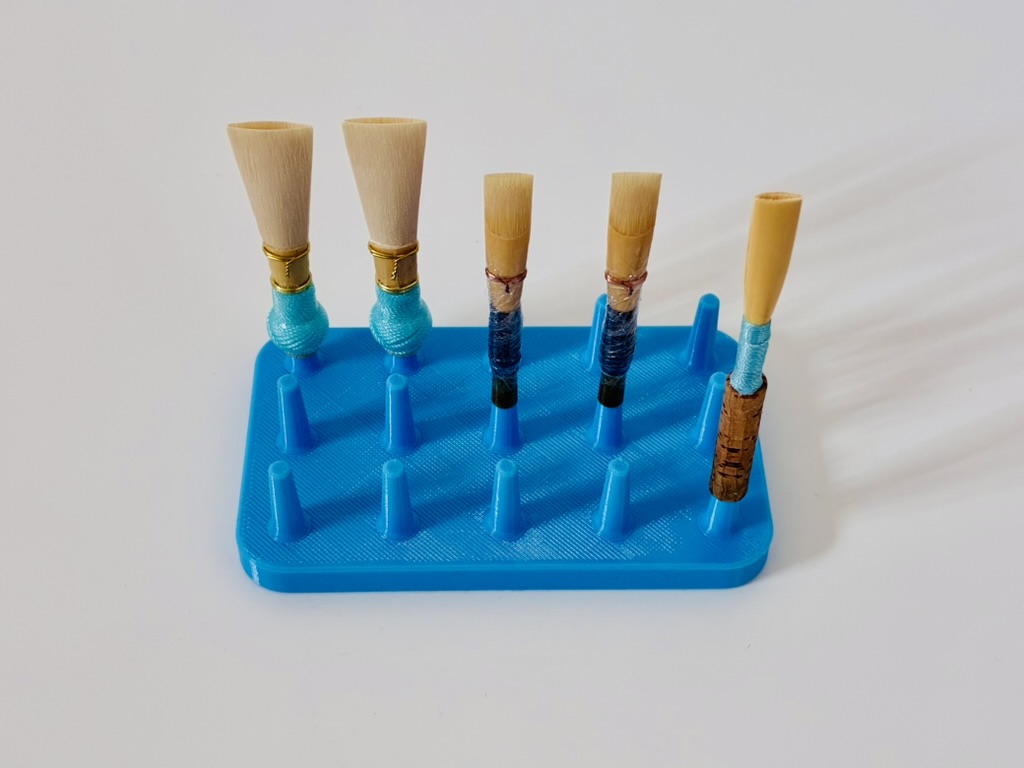

Protruding Reed Rack
The protruding reed rack holds reeds by their exposed staples. This design accommodates oboe, English horn, and bassoon reeds (internal staple parameters may differ); however, due to the inherent limitations of FDM (Fused Deposition Modeling) 3D printing, the staples may be more susceptible to breakage.
Build Guide
Bill of Materials
Printed Parts
- Reed drying rack $\times$ 1
Printing the Parts
Generating 3D Files
| Source | Description |
|---|---|
| GitHub Repository | Generate the 3D file from recessed-reed-rack.scad or protruding-reed-rack.scad. |
| MakerWorld Global | Generate the 3D file on MakerWorld Global webpage. |
| MakerWorld CN | Generate the 3D file on MakerWorld CN webpage. |
Printing Tips
- Use a large layer height for the protruding reed rack to strengthen the staple.
