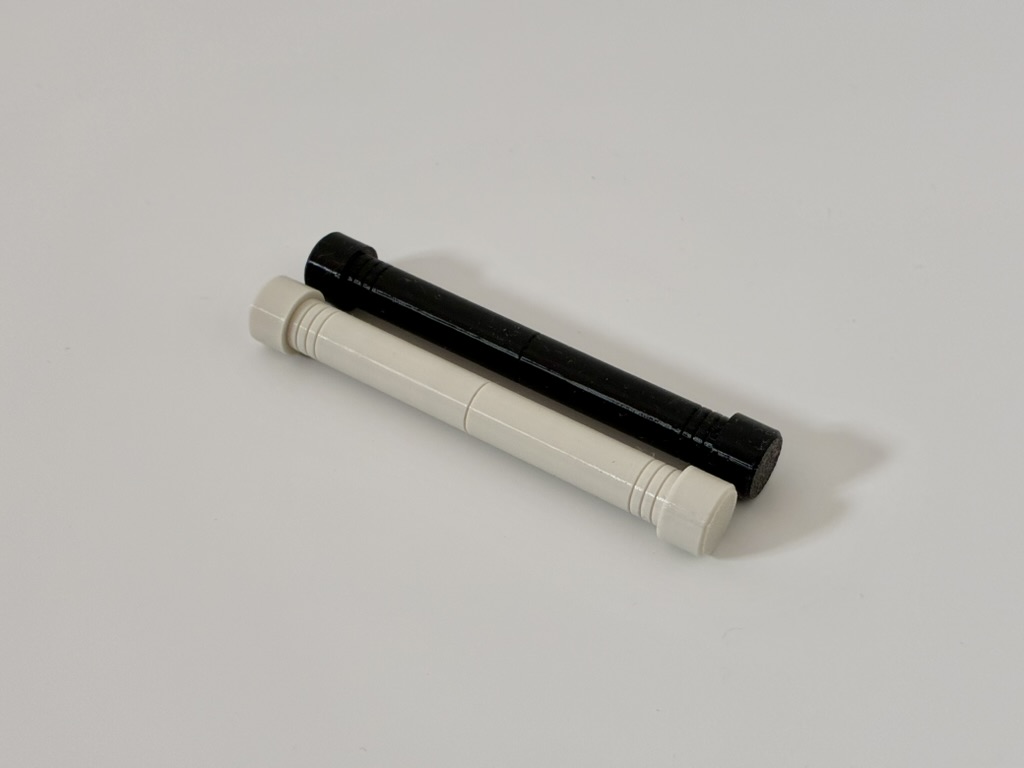

Cane Easel
Cane Easel for Oboe
Description
The cane easel is used for marking the center of the cane and providing support when shaving the end of the cane.
Build Guide
Bill of Materials
Printed Parts
- Easel body $\times$ 1
- Easel lid $\times$ 2
Printing the Parts
Generating 3D Files
| Source | Description |
|---|---|
| GitHub Repository | Generate the 3D file from cane-easel.scad. |
| MakerWorld Global | Generate the 3D file on MakerWorld Global webpage. |
| MakerWorld CN | Generate the 3D file on MakerWorld CN webpage. |
Customization
The cane easel is fully parametric and can be customized by modifying the parameters in cane-easel.scad. You can edit them to fit different instruments. Reference parameters for oboe and English horn are given below.
| Instrument | Easel Length | Easel Diameter |
|---|---|---|
| Oboe | 76mm | 10.0mm |
| English Horn | 93mm | 13.7mm |
Printing Tips
- Use a layer height lower than 0.12mm to make sure the screw fits well.
Assembly
Simply screw the two easel lids onto each side of the easel body.
